RYOBI PBLLM05K2 18V ONE+ HP 20-inch self-propelled mower kit review

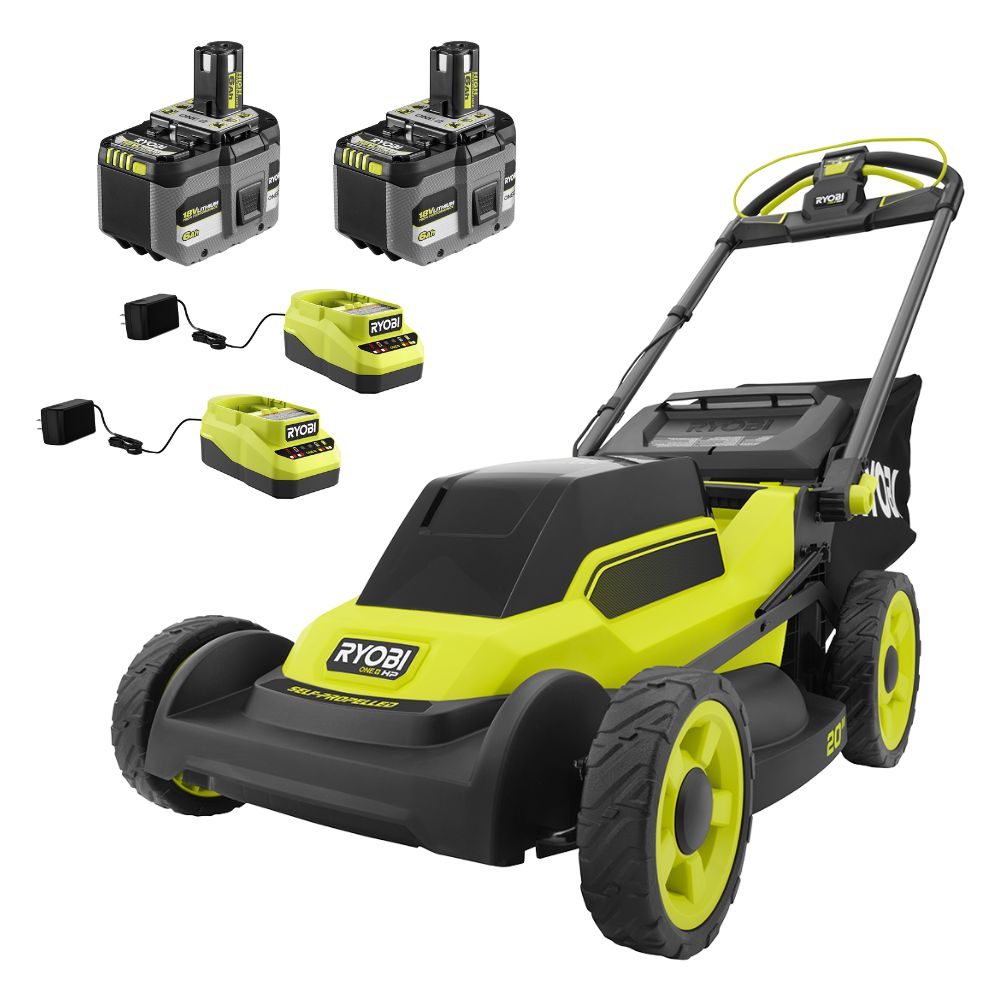

The RYOBI PBLLM05K2 is the exact U.S. 18V ONE+ HP Brushless 20-inch self-propelled mower kit. Its product page names the mower body PBLLM05 and lists two 18V 6Ah batteries, two 18V chargers, a grass catcher, mulch plug, side-discharge chute, start key and operator’s manuals. The body manual independently confirms that two charged batteries must be installed for the mower to operate. The old collection-row wording called it “multi-blade,” but the exact body manual describes one replaceable cutting blade; do not confuse it with RYOBI’s P11100/P11010 dual-blade CROSS CUT mower.

A conventional 20-inch self-propelled walk-behind

The PBLLM05 body has a 20-inch deck, rear-wheel drive and variable-speed self-propelled operation. Its cruise-control slider lets the operator set a walking pace, while the self-propel levers engage powered movement. That helps when a push-only mower feels like too much work, but it is still a walk-behind rather than a rider, robotic mower or all-wheel-drive machine. The manual also describes using its self-propel drive without engaging the cutting blade to move the mower from one place to another. This is a useful distinction for maneuvering, not permission to carry or transport an energized mower carelessly.

There are seven single-point height settings from 1.5 to 4 inches. The manual’s specification table identifies one cutting blade, and its replacement instructions and parts diagram concern a single blade. That corrects the observed collection label without converting the listing into an unsupported performance claim. It is not the P11100 kit’s dual-blade CrossCut setup, and no independent cutting-quality comparison is available here. The manufacturer’s “more power than a 150cc gas mower” wording is a brand comparison, not a test result or guarantee that the electric mower will cut every lawn like a particular gas machine.

Three clipping routes, with a specific side-discharge setup

The exact kit includes a bag and frame, mulching plug and side-discharge chute. Its manual covers bagging, mulching and side discharge; for side discharge, it instructs the owner to keep the mulch plug installed while fitting the chute. The plug and catcher are alternate configurations, not accessories that should be left in place together. A buyer who needs a genuine side-discharge arrangement can qualify it, while a shopper seeking leaf shredding should not treat the mower’s mulching mode as proof of that separate capability.

RYOBI advises mowing dry grass, reducing walking speed in heavy growth, and removing no more than one-third of the grass length at a time. Those are operating instructions rather than an independent test of how quickly this deck clears a particular yard. Tall or damp grass, a low cut setting, turns and collection stops can change the task. The catcher’s capacity and expected runtime on a specific lawn are not measured here.

Two 6Ah batteries are two active ports, not a spare-pack promise

The kit’s package list includes two 18V 6Ah packs and two 18V chargers. The mower has two powered battery ports and needs both charged packs installed to run; its separate storage compartment is not another active port. The manual says the mower stops when one installed pack becomes fully discharged. Since this exact kit includes only two packs, do not read the package image as showing batteries for automatic changeover or uninterrupted operation. RYOBI describes up to 40 minutes of runtime using the two 6Ah batteries and says the mower is ideal for a half-acre or less. These are maker estimates, not measured results or a promise that every half-acre lawn can be finished on one charge. Grass condition, height, pace, slope, turns and clipping route can all change the work completed.

The product page calls the chargers “18V” but does not identify their exact model codes or publish a kit recharge time, so I leave both unknown. The same caution applies to pack codes: the U.S. kit page documents capacity and count, not the precise battery model. RYOBI’s ONE+ family can be useful if your shed already has compatible 18V equipment, but follow the mower manual’s battery/charger correlation list rather than assuming every branded pack is appropriate.

Storage and upkeep belong in the fit decision

The handle folds and the manual explains upright storage on the mower’s rear support. To stand it vertically, remove the catcher, lower and lock the handle as instructed, and keep cables clear; remove the start key and all battery packs before storing. The mower’s tilt sensor prevents starting in a vertical position or when tilted beyond its documented angle, but it is not a substitute for the manual’s storage steps. Check whether the standing mower and folded handle actually fit your garage before relying on deck width alone.

The manual says not to mow wet ground or in rain, gives a 15-degree maximum slope, and directs mowing across a slope rather than up or down. It also says not to hose or rinse the mower. Stop the blade, remove the key and batteries, then clean with a dry cloth and clear buildup as directed. A stated slope ceiling does not make every lower slope safe; if the footing feels uncertain, the manual says not to mow it. The manual and current product page both show a three-year household limited warranty; the manual states one year for business or commercial use.

Who should choose PBLLM05K2?

This kit is for someone who wants a 20-inch self-propelled mower, three documented clipping configurations and two included 6Ah batteries with chargers, especially if the 18V ONE+ platform already matters in their tool shed. Compare P11100 if a wider two-blade CrossCut distinction and four included 4Ah packs are more important; compare P1190 if you want a smaller 16-inch push mower instead. PBLLM05K2’s practical limits are clear: two packs must be installed, operation stops when one is depleted, exact charger and battery codes are not stated on the U.S. listing, and the half-acre/40-minute figures are not guarantees. Choose it for those exact documented tradeoffs, not for a promise of test performance or a generic claim of gas-equivalent results.

Sources: RYOBI’s exact PBLLM05K2 U.S. product page and the PBLLM05 operator’s manual (manufacturer-authored TTI manual, hosted in Home Depot’s PDF library). The review uses the manual for body operation and safety, and the exact U.S. product page for kit contents. This is source-based analysis, not hands-on testing.
