RYOBI RY401017BTL 20-inch 40V HP push mower (tool only) review

The RYOBI RY401017BTL is the tool-only purchase code for the 20-inch, 40V HP Brushless push mower built around the RY401017 mower body. The important word in the SKU is “tool-only”: the exact U.S. page says the body comes with the grass catcher, start key, mulch plug, side-discharge chute and manual, but not a battery or charger. It is a coherent choice when you already have suitable RYOBI 40V power and charging gear. If this would be your first 40V purchase, compare the RY401170 kit instead of treating the similar-looking mower image as proof that batteries come in the carton.

Push-only is a real operating choice

This machine cuts a 20-inch path, but its wheels are not powered. You steer and push the mower throughout the route; pressing the start control runs the blade, not a traction drive. That simple distinction matters more than the 40V badge if you are comparing it with RYOBI’s rear-wheel-drive RY401018 or the larger CrossCut models. For a mostly level yard where you are comfortable guiding the machine, the push format avoids having to manage a powered travel control. If pushing is a barrier, this is not the right package merely because its cutting width matches a self-propelled alternative.

The RY401017 manual specifies a 20-inch deck, a 40V DC motor, seven cutting-height positions from 1.5 to 4 inches, and 8-inch front and 10-inch rear wheels. RYOBI lists the mower at 42.2 pounds; the listing does not say whether that published weight includes a battery, so it should not be read as a measured carry weight for a fully equipped mower. Its handles fold for upright storage. Before choosing it, measure not only the shed opening but the whole path through gates and turns: a 20-inch cutting width is not the mower’s overall width.

Three clipping routes, changed as separate setups

The manual and kit contents document mulching with the plug, rear collection in the catcher, and side discharge using the chute. They are alternatives, not simultaneous outputs. Stop the machine and remove its battery and key before changing attachments or clearing clippings. Bagging may fit a tidy-up routine; mulching avoids stopping to empty a catcher when the grass is dry and the growth is suitable; side discharge can be useful where a longer cut is better left spread. The manual cautions against mowing wet grass and recommends a higher or narrower cut in new or thick growth. A 20-inch deck cannot eliminate the extra work of difficult grass conditions.

RYOBI advertises up to 45 minutes and says the mower is suited to up to one-half acre when using a 40V 6Ah battery. That is a maker’s maximum and yard-fit statement, not an independent runtime test or a guarantee for a particular lawn. The stated pack is absent from the RY401017BTL box. The manual describes one active battery port plus a storage compartment where an extra pack may be kept; a pack in storage is not an active second power source. If the half-acre reference is important to your decision, account for the compatible battery and the lawn’s height, moisture, turning and clipping route instead of counting on the number as a promise.

Read the manual before taking it onto a slope

RYOBI’s manual says not to mow inclines over 15 degrees and to mow across a slope, not straight up or down; it also says to stop if you feel unsure and avoid wet ground, drop-offs and poor footing. That limit is not a safe-terrain certification for a particular site or operator. The owner’s routine is otherwise straightforward but not maintenance-free: clear foreign objects, inspect the blade and fasteners, clean grass from under the deck after use, keep the mower dry and indoors, and remove the key and battery before cleaning or storage. Do not hose the mower.

The same manual describes a single cutting blade, not RYOBI CrossCut. If you specifically want the CrossCut arrangement, compare a model page that names it; ordinary bagging capability does not imply multi-blade hardware. The RY401017 manual gives instructions for a mulching plug, catcher and side chute, but no leaf-shredding or rear-discharge mode. There is also no basis here for assigning an acreage guarantee, charger wattage or charge time.

Who should shortlist the BTL code?

Keep RY401017BTL on the list if you want a 20-inch operator-pushed mower, the three documented clipping options, folding storage and already own a compatible RYOBI 40V battery and charger. If you need the battery included, the RY401170 is the kit for the same push arrangement, with a 6Ah pack and charger listed. If powered travel is essential, compare RY401018BTL or the battery-included RY401180; the speed control and runtime claim differ, so do not collapse those into one review. This is manufacturer-source analysis, not hands-on testing.

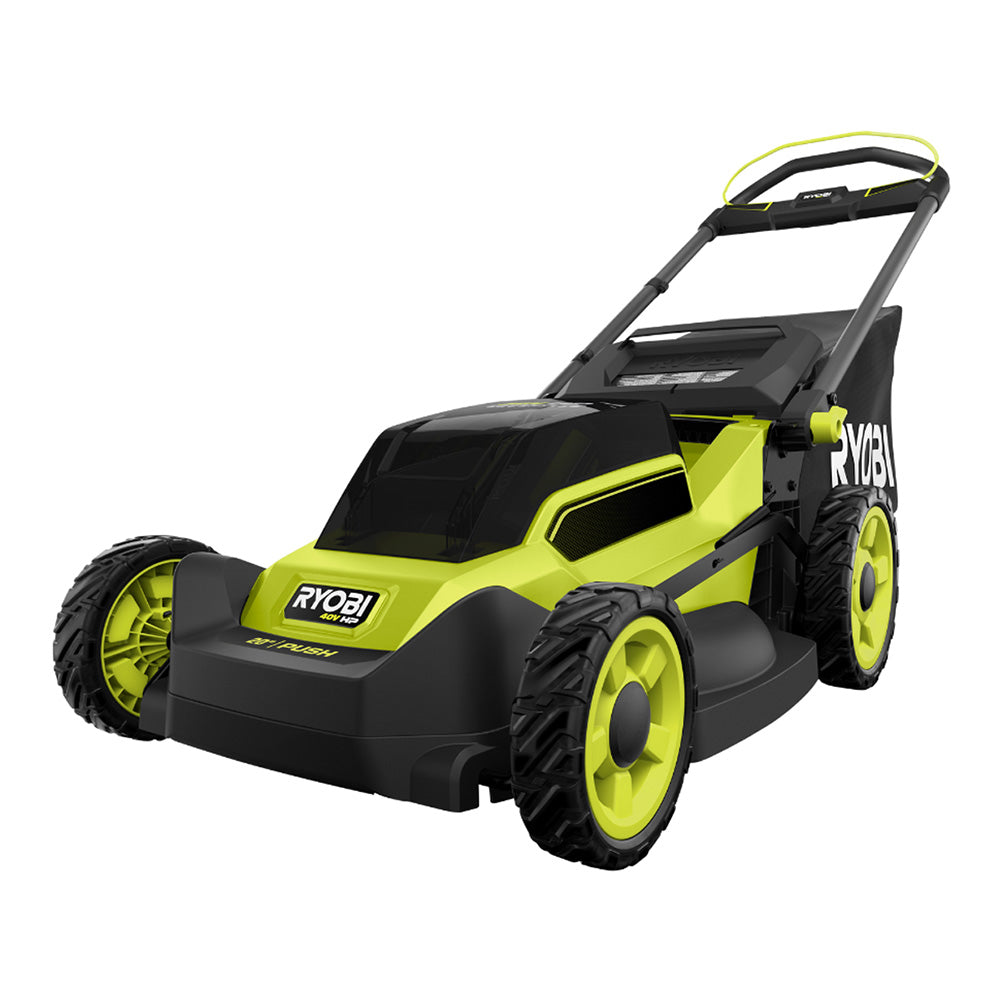

Sources: RYOBI’s U.S. RY401017BTL product page and RY401170 kit page; the RY401017 operator manual identifies the mower body and operating limits. The product render is not test photography and does not establish package contents.
