RYOBI RY40HPLM03K2 21-inch 40V HP AWD CrossCut mower kit review

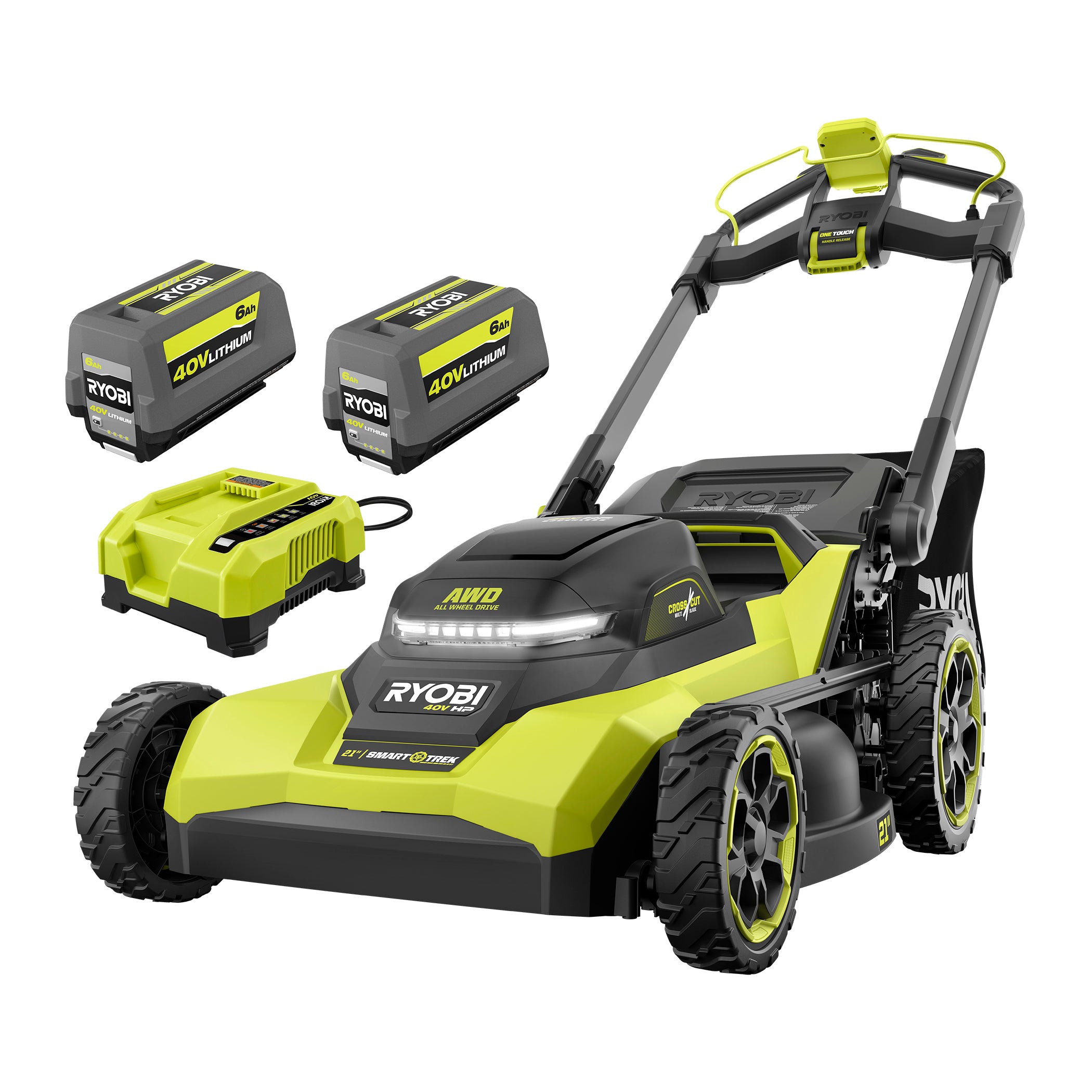

The RY40HPLM03K2 is the all-wheel-drive CrossCut choice among these 21-inch RYOBI 40V HP walk-behind configurations. Its package includes two 6.0 Ah batteries and a rapid charger, along with a bag, start key and side-discharge chute. The mower also has an integrated mulch plug. It is therefore a complete kit with several clipping options, but the distinctive engineering and operating-plan difference is AWD paired with the multi-blade CrossCut system.

AWD does not replace slope instructions

All-wheel drive can be a meaningful preference for a buyer who wants powered assistance at both axles rather than the rear-drive arrangement of the 01K2 and 02K2. RYOBI calls this a Smart Trek self-propelled mower. Yet AWD alone does not establish that a slope is safe, that traction will be adequate in all soil conditions, or that the machine has a particular grade rating. The manufacturer’s exact operator manual is the authority for conditions and terrain. Do not select this mower as a substitute for a rider, a slope-rated commercial product or a manual-approved mowing practice.

The CrossCut blade arrangement separates it from the single-blade 01-series. RYOBI says the design can improve bagging efficiency, and the product page includes a “75 percent better” comparison. That is a manufacturer claim rather than an independently measured result. If CrossCut is not important, the 01K2 retains a more conventional one-blade configuration; if you want CrossCut but rear-wheel drive is adequate, the 02K2 offers that arrangement. The 04K2 also has CrossCut, but is push-only.

Kit and performance claims

The exact SKU page identifies the two 6 Ah packs and rapid charger. RYOBI gives up to 75 minutes and a maximum area claim of up to three-quarter acre. Treat both as estimates dependent on the conditions and usage pattern; neither is a tested guarantee. Cut height, grass density and moisture, pace, turns, turbo use and battery condition all matter. A broad marketing comparison to a 196cc gasoline mower is similarly not an independent torque or cutting test. The two-pack configuration is an observable purchase fact; expected area remains a variable.

The 21-inch cutting width and composite deck put the mower within a familiar residential walk-behind size, but check the complete dimensions and folded storage clearance. The kit’s bag supports bagging, the page lists side discharge, and the mulch plug supports recycling clippings. These options let the owner choose a mode suited to ordinary conditions, but accessories should be matched to the exact model and fitted as the manual directs. Do not assume a separate specialized high-lift blade is included unless the package says so.

Controls, storage and maintenance

The Cut Command Center groups display and adjustment functions, including runtime information, turbo mode, lights and drive speed. A buyer who values display access should still try or examine the actual control arrangement; product copy does not establish hand comfort for every user. RYOBI lists vertical storage and one-touch folding. Follow the RY40HPLM03 manual for battery removal, handle folding, storage orientation and service. Remove the packs and key before clearing debris or maintenance, wait until the blade stops, and do not reach under the deck while it is connected.

No numeric maximum grade or water-resistance rating is asserted. Follow the manual for slopes and wet grass. RYOBI lists a five-year tool warranty and three-year battery warranty on the U.S. product page; verify the conditions for the exact serial and sale. Home Depot’s document host supplies a 03 operator manual whose cover identifies the RY40HPLM03 mower family, so keep the machine’s own model and serial label with the manual during service.

Best fit and alternatives

Choose the 03K2 when you want a complete two-battery kit, 21-inch walk-behind format, CrossCut cutting system and all-wheel self-propelled drive. It is a poor match if you require push-only operation, a single blade, a bare tool, an established numeric slope capability or a guaranteed three-quarter-acre result. AWD is a real configuration distinction, not a promise about every challenging lawn. Compare the 02K2 if rear-drive CrossCut fits your route; the 01K2 if a single-blade kit is preferable; and the 04K2 if you want the CrossCut kit without powered drive. The 05K is another push kit, but it uses a single blade and one 8 Ah battery rather than the two-pack CrossCut arrangement.

Sources: RYOBI’s exact RY40HPLM03K2 product page, the downloaded RYOBI-authored RY40HPLM03 operator manual, and the dated CPSC recall notice. This is source-based analysis, not a hands-on test.
